heavy duty bucket assy 205-922-6210 "pc200lc-7-w1 from China manufacturer - Xiamen Doozer Construction Machinery Co., Ltd.

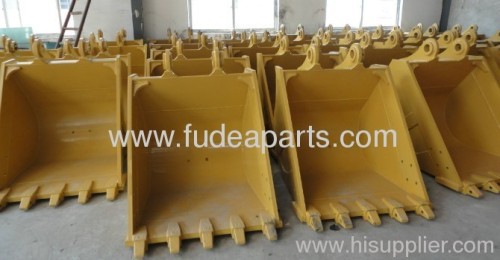

heavy duty bucket assy 205-922-6210 "pc200lc-7-w1

Price:	500.0~1500.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: pc200lc-7

Production Capacity: 500 Piece/Pieces / Month

Delivery Date: Within 3 days or from stock

Certification: ISO9001:2000

Means of Transport: Ocean,Air

Packing: In strong fumigate pallet p...

Brand Name: FD

Standard thicknessaahomemade high quality tooth seat . For the environmentaageneral mining clay and sand,soil,gravel

1/Product Characteristics:
On the basis of S series, high-stress and wearing parts are made of high-strength wearable steel;
Adapter is a world-famous SBIC product;
Inherit all advantages of S series, and greatly improve strength and wearability.

We can make or design buckets as per customers' request

Programmer Type	Material	Configuration and capability	Appropriate working environment
Standard Bucket	Q345B	Standardplatethickness, homemade high quality tooth plare	For digging clay, or loading the sand, mud and gravel.

Technical Parameters:

Programmer	Code	Related chemical composition					Hardness( HB)	Extensio (%)	Drag and extension intensity( N/mm2)	Bend intensity ( N/mm2)
Material	Code	C	Si	Mn	P	S	Hardness( HB)	Extensio (%)	Drag and extension intensity( N/mm2)	Bend intensity ( N/mm2)
Mn board	Q345B	0.18	0.55	1.4	0.03	0.03	163-187	21	470-660	345
Homemade re-grinding board	NM360	0.20	0.3	1.3	0.02	0.006	360	16	1200	1020
High intensity re-grinding board	HARDOX-500	0.20	0.7	1.7	0.025	0.01	470-500	8	1550	1300
